Nominal screw sizes m5 and larger have six drilled holes. Eye bolts and eye lags.
All dimensions are in millimeters.
Metric screw table. The following are to links of iso metric hardware specifications table charts. Metric clearance hole chart. Drilled head metric hexagon socket head cap screws normally are not available in screw sizes smaller than m3 nor larger than m36.

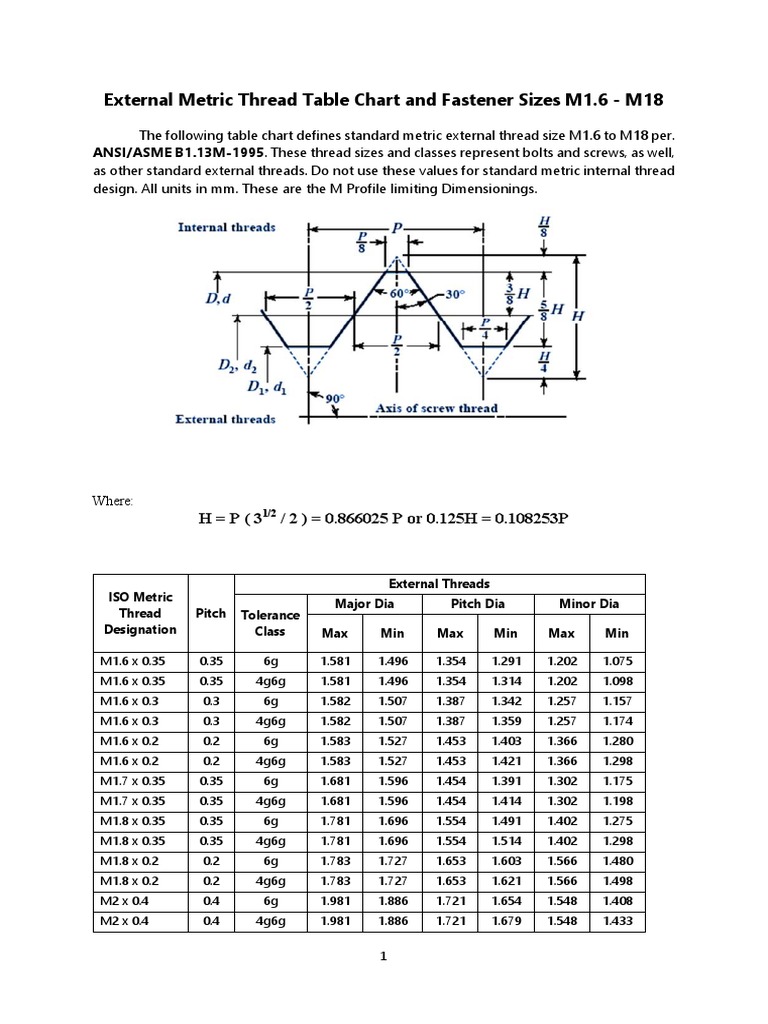

Dimensions of metric thread pitch diameter major diameter and minor diameter for m profile external threads are given in the table. These are the m profile limiting dimensionings. Do not use these values for standard metric internal thread design.
The m3 and m4 nominal screw sizes have two drilled holes spaced 180 degrees apart. Metric screw thread chart metric tap size tap drill inches clearance drill inches m16 x 035 55 0052 50 0070 m18 x 035 53 0057 48 0076 m2 x 04 52 0063 45 0082 m3 x 05 39 00995 18 0125 m35 x 06 32 0116 28 0140 m4 x 07 29 0136 19 0166 m45 x 075 25 01495 14 0182. H p 3 12 2 0866025 p or 0125h 0108253p.
Metric clearance hole chart for metric bolts and screws according to asme b1828. Metric machine screws tap drills chart this table is the chart for publication of information of metric machine screws along with tap and clearance drill information. Do you want to contribute to this section.
These thread sizes and classes represent bolts and screws as well as other standard external threads. Should you find any errors omissions broken links please let us know feedback. All units in mm.
Fastener and screw bolt design formula and calculations. Heatsink screws expansion port screws jcis jis japanese camera industry standard waferhead wafer wafer head thinhead thin head m25x5mm m25x8mm cheap laptop screws 2mm mm 3mm 25mm 25 2 3 assorted buy m2 m25 m3 mini screws micro screws stainless steel zinc machine screws small screws panhead cheesehead cheese flathead pan flat metric machine screws metric screws comparison metric conversion. Engineering slide chart ansi screw hardware selector.
If all else fails you may want to use our drill size conversion table or our tap drill size calculator. All dimensions are in millimeters. Metric external thread dimensions given in the external thread chart below according to asme b113m standard.
The axis of the head shall be located at a true position relative to the axis of the screw shank within a tolerance zone having a diameter equivalent to 6 of the specified maximum head diameter or the specified maximum width across flats of hex and hex flange heads. See premium publisher program.
